Pytorch的SGD，Adam和RMSprop的分析和复现
前言
我总觉得，书本上说的是一回事，实际是另一回事。应实际看看优化器到底怎么算的，用矩阵运算把结果复现出来。

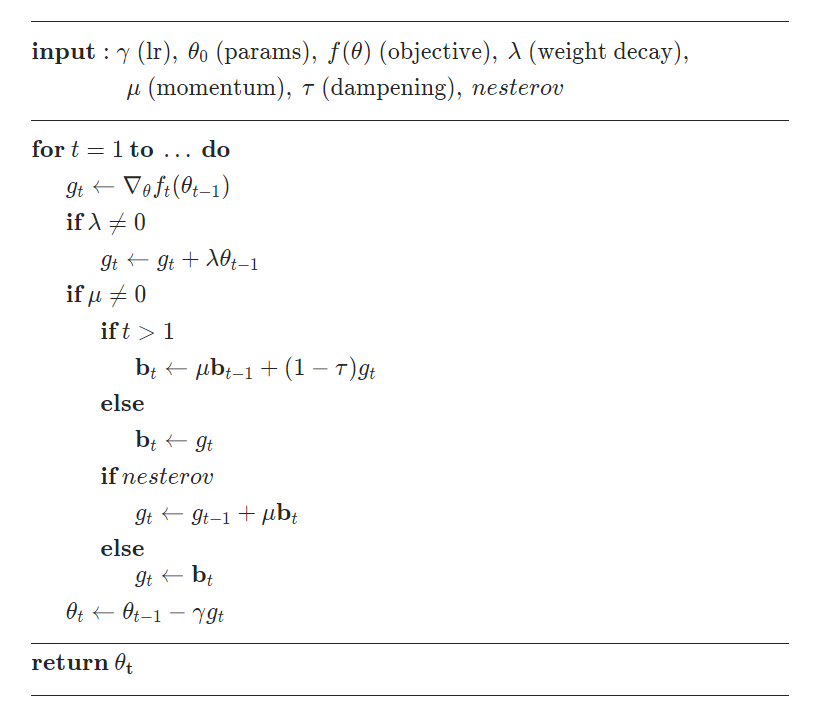

SGD
随机梯度下降(Stochastic Gradient Descent)，这要强调和GD的区别。书本上的GD是遍历完所有的样本之后进行一次梯度下降，SGD是在得到一个样本后进行一次梯度下降，mini-batch是进行一定数量的样本之后才进行一次梯度下降。而我们实际使用的时候，输入到optimizer的本身就是根据一个batch的样本得到的梯度。因此，尽管代码中名为“SGD”，实际上执行效果是书本上的mini-batch方案。
说的已经比较明白了，但有三点要注意：
-
就是初始参数，是第一次的梯度值
-
nesterov的分支与实际情况不符，实际为
-
当想使用nesterov时，要保证dampening=0且momentum>0，否则出错。
if nesterov and (momentum <= 0 or dampening != 0): raise ValueError("Nesterov momentum requires a momentum and zero dampening")
此外，官方文档明确指出：实现的算法和论文中的有一定出入！ 有兴趣的可以进去看看，就是学习率位置的区别。

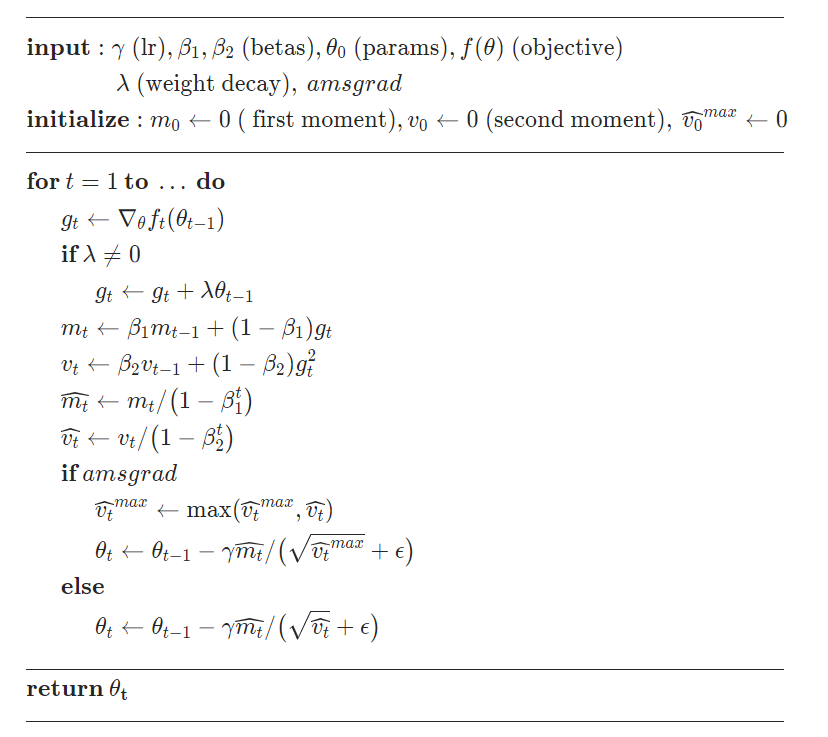

Adam
amsgrad分支不同，实际情况为

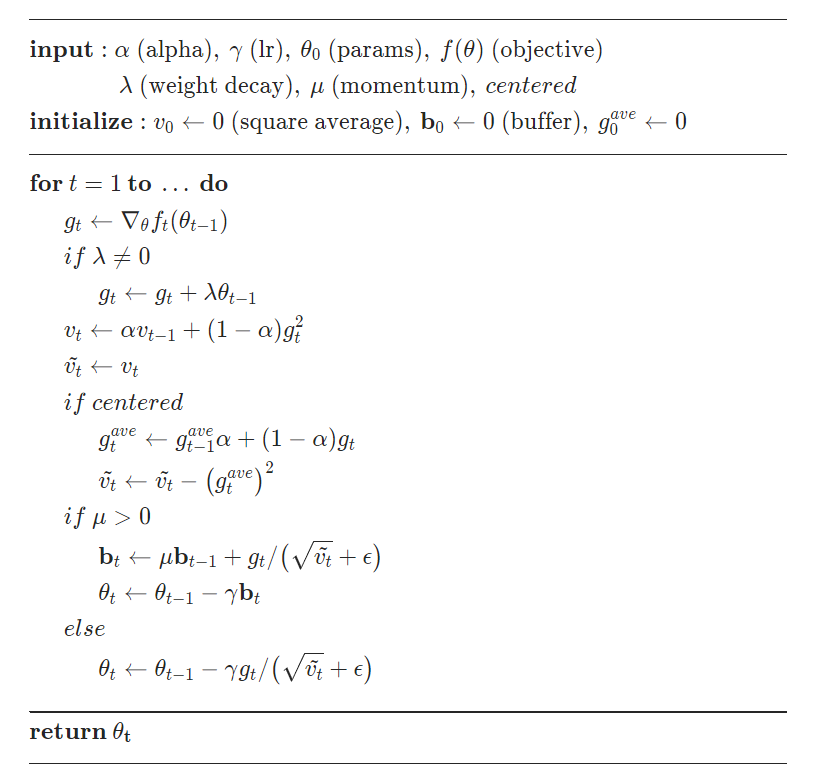

RMSprop
代码实现
通过改变use_torch_optim的值，来确定使用pytorch中的优化器（=1），还是自己写的优化器（=0）。观察两者的输出是否一样即可。
模型很简单，pred=WX，loss=mean(pred-Y)
import torch
import torch.nn as nn
import numpy as np
import os
def seed_torch(seed=0):
# random.seed(seed)
os.environ['PYTHONHASHSEED'] = str(seed)
np.random.seed(seed)
torch.manual_seed(seed)
torch.cuda.manual_seed(seed)
torch.backends.cudnn.benchmark = False
torch.backends.cudnn.deterministic = True
class Model(nn.Module):
def __init__(self):
super(Model, self).__init__()
self.para = torch.nn.Parameter(torch.ones([3, 1]))
# 用于存储optim的相关变量
self.para_pre = self.para
# SGD相关
self.gradient_pre = 0
self.buffer = 0 # buffer, 相当于存速度
# Adam相关
self.moment = 0
self.velocity = 0
self.velocity_max = torch.zeros([3,1])
# RMSprop相关
self.gradient_ave = 0
def calculate(self, x, y):
pred = torch.mm(x.to(self.para), self.para)
loss = torch.mean(pred - y)
return pred, loss
def pytorch_optimizer(idx, model, x, y, optimizer):
pred, loss = model.calculate(x, y)
optimizer.zero_grad() # 置零导数
loss.backward()
optimizer.step()
return model.para
def matrix_sgd(idx, model, x, y, lr, momentum=0, dampening=0, weight_decay=0, nesterov=False):
pred, loss = model.calculate(x, y)
# 得到梯度
gradient = torch.mean(x, dim=0).reshape([3, 1])
if weight_decay != 0:
gradient = gradient + weight_decay * model.para_pre
if momentum != 0:
if idx > 0:
model.buffer = momentum * model.buffer + (1 - dampening) * gradient
else:
model.buffer = gradient
model.gradient_pre = gradient
if nesterov:
gradient = gradient + momentum * model.buffer
else:
gradient = model.buffer
# 执行下降
model.para.data = model.para - lr * gradient # 若按流程图，应是model.gradient_pre
# 保存当前梯度
model.gradient_pre = gradient
return model.para
def matrix_adam(idx, model, x, y, lr, betas=[0.9, 0.999], eps=1e-8, weight_decay=0.1, amsgrad=False):
beta1, beta2 = betas
pred, loss = model.calculate(x, y)
# 得到梯度
gradient = torch.mean(x, dim=0).reshape([3, 1])
if weight_decay != 0:
gradient = gradient + weight_decay * model.para_pre
model.moment = beta1 * model.moment + (1-beta1) * gradient
model.velocity = beta2 * model.velocity + (1 - beta2) * (gradient * gradient.conj())
moment = model.moment / (1 - (beta1 ** (idx + 1)))
velocity = model.velocity / (1 - (beta2 ** (idx + 1)))
if amsgrad:
model.velocity_max = torch.maximum(model.velocity_max, model.velocity)
model.para.data = model.para- lr * moment / \
(torch.sqrt(model.velocity_max / (1 - (beta2 ** (idx + 1)))) + eps)
else:
model.para.data = model.para - lr * moment / (torch.sqrt(velocity) + eps)
return model.para
def matrix_rmsprop(idx, model, x, y, lr,momentum=0.1, alpha=0.99, eps=1e-8, weight_decay=0.1, centered=False):
pred, loss = model.calculate(x, y)
# 得到梯度
gradient = torch.mean(x, dim=0).reshape([3, 1])
if weight_decay != 0:
gradient = gradient + weight_decay * model.para_pre
model.velocity = alpha * model.velocity + (1-alpha) * (gradient * gradient.conj())
velocity = model.velocity
if centered:
model.gradient_ave = alpha * model.gradient_ave + (1-alpha) * gradient
velocity = velocity - model.gradient_ave * model.gradient_ave.conj()
if momentum > 0:
model.buffer = momentum * model.buffer + gradient / (velocity.sqrt() + eps)
model.para.data = model.para - lr * model.buffer
else:
model.para.data = model.para - lr * gradient / (velocity.sqrt() + eps)
return model.para
if __name__ == "__main__":
seed_torch(123)
use_torch_optim = 0 # 判断是否采用pytorch的优化器
x = torch.rand([1000, 3])
y = torch.rand([1000, 1])
lr = 0.01
batchsize = 4
model = Model()
# 一定要在开始训练之前定义optimizer，
# 不要再循环中定义！
# 否则每次训练optimizer都认为是一个新开始
# 相当于momentum=0的效果，dampening和nesterov也无效。
# optimizer = torch.optim.SGD(model.parameters(), lr=lr,
# momentum=0.1,
# dampening=0.1,
# weight_decay=0.1,
# nesterov=True)
optimizer = torch.optim.Adam(model.parameters(), lr=lr,
betas=[0.9, 0.999],
eps=1e-8,
weight_decay=0.1,
amsgrad=True)
# optimizer = torch.optim.RMSprop(model.parameters(), lr=lr,
# momentum=0.1,
# alpha=0.99,
# eps=1e-8,
# weight_decay=0.1,
# centered=True)
for idx in range(100):
if use_torch_optim:
out = pytorch_optimizer(idx, model, x, y, optimizer)
else:
# out = matrix_sgd(idx, model, x, y, lr,
# momentum=0.1,
# dampening=0,
# weight_decay=0.1,
# nesterov=True)
out = matrix_adam(idx, model, x, y, lr,
betas=[0.9, 0.999],
eps=1e-8,
weight_decay=0.1,
amsgrad=True)
# out = matrix_rmsprop(idx, model, x, y, lr,
# momentum=0.1,
# alpha=0.99,
# eps=1e-8,
# weight_decay=0.1,
# centered=True)
print(out)
